CAST RESIN DRY TYPE TRANSFORMERS

  • 170405-geafol-neo-2

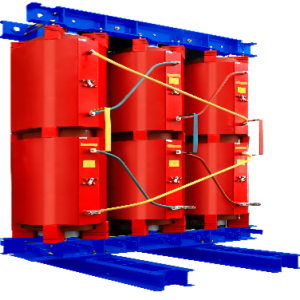

    GEAFOL Neo

    • Type: Cast Resin Dry
    • Standard: IEC 60076-11.
    • Installation: Indoor, Outdoor
    • Rated frequency: 50Hz (60Hz)
    • Rated phase: 3 phase.
    • Rated capacity: from 200kVA to 50MVA
    • Rated HV: 35kV; 22kV; 15kV; up to 52kV
    • Rated LV: 0.4kV;6kV; 11kV
    • HV tapping: ±2×2,5%
    • Vector group: Dyn 11
    • Cooling method: AN or AN/AF
    • Insulation class (HV/LV): F/F.
    • Average temperature rise (HV/LV: 100/100 (K)
    • Winding material (HV/LV): Aluminum hay Copper.
    • Ambient Temp (Max. / Min. / Year / day): 40/-25/20/30oC (C2)..
    • Altitude: ≤ 1000 m
    • Environmental class: E2
    • Fire resistance class:F1
    • Climate category: C2
  • Banner 2-2

    TMC Transformers

    Type: Dry type transformer
    – Standard: IEC 60076-11.
    – Type of installation: indoor and our door (with enclosure IP)
    – Frequency: 50Hz (60Hz)
    – Phase: 3 phases.
    – Capacity: up to 52 MVA
    – Primary rated voltage: 35kV; 22kV; 15kV; uo to 25kV
    – Secondary rated voltage: 0.4kV;6kV; 11kV (on request)
    – Off-Load Tapping on HV Coil : ±2×2,5% (on request)
    – Vector Group: Dyn 11 (on request)
    – Type of cooling: AN hay AN/AF, AFWF, AFAF, WF
    – Insulation Class (HV/LV): F/F, H/H
    – Average Winding Temp. Rise (HV/LV:100/100 (K)
    – Winding Material (HV/LV): AL or Cu.
    – Ambient Condition ( Max/ Min/Yearly average/Daily): 40/-25/20/30oC (C2).
    – Altitude: ≤ 1000 m
    – Environmental Class: E2
    – Fire Behavior Class:F1
    – Climatic Class: C2
